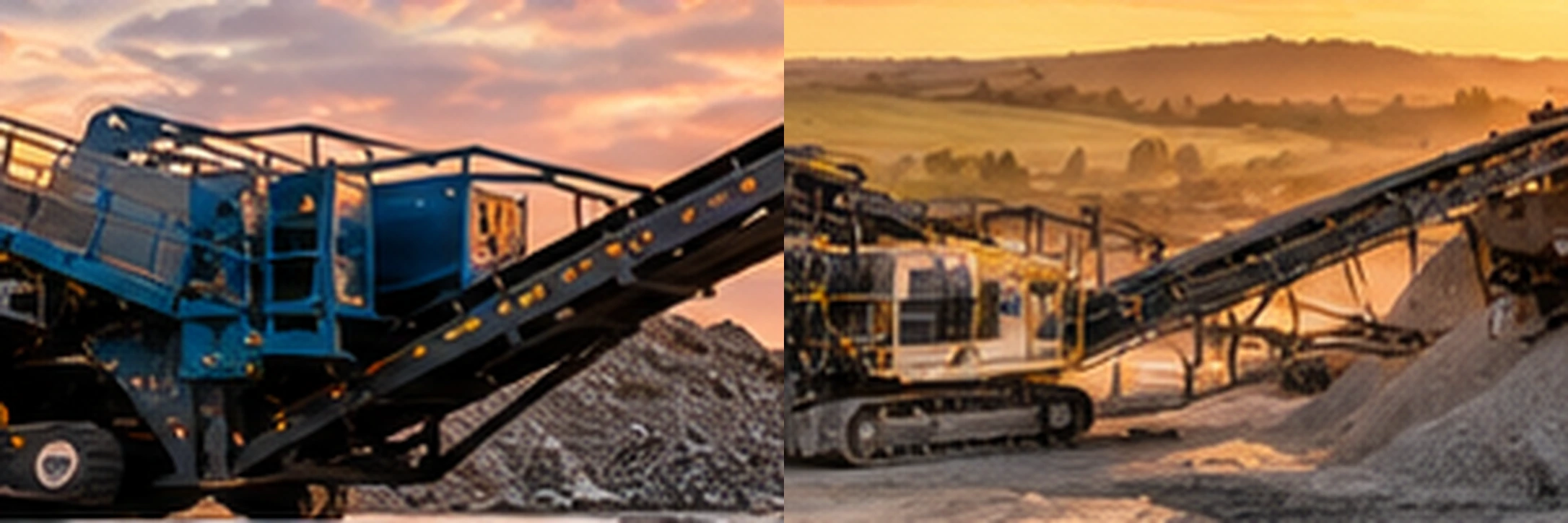

Trommel screens and vibrating screens both separate material by size, but they use different motions and machine geometry. Trommels rotate material inside a cylindrical drum. Vibrating or high-energy deck screens move material across flat or inclined screen media. The right machine depends on the feed, moisture, contamination, required products and downstream process.
1. Start with the material, not the machine
Record particle size, moisture, contamination, organics, stringy material, clay, fines percentage and target products. Compost, topsoil and wood waste can behave very differently from crushed stone or clean sand. Select the screen around how the material behaves under motion.
2. Trommels use a rotating drum
Material enters a perforated cylindrical drum and tumbles as the drum rotates. Fine material passes through openings while oversized material travels toward the discharge end. Vermeer and McCloskey market trommel systems for compost, topsoil, wood biomass and other recycling or landscape products.
3. Vibrating screens use one or more decks
Deck screeners use vibration to stratify and move material across screening media. Multi-deck units can produce several fractions in one pass. McCloskey's S-Series machines are used in aggregate, coal, crusher circuits, sand and wood-chip applications.
4. Moisture and contamination change screening behavior
Wet or sticky feed can blind openings, build up on decks or form balls that behave differently than individual particles. Trommel tumbling can help break apart some organic or soil materials, while high-energy deck screens can work well for clean aggregate and higher-throughput sizing. Test representative feed when possible.
5. Product count matters
A trommel commonly produces fines through the drum and oversize out the end, depending on configuration. A two- or three-deck vibrating screen can produce multiple size fractions. If the operation needs several tightly controlled products, deck layout can become a major decision factor.
6. Compare the flow path
| Question | Trommel | Vibrating screen |
|---|---|---|
| Screening motion | Rotating drum | Vibrating deck or decks |
| Common feed | Compost, topsoil, wood waste, mixed recycling | Aggregate, sand, crusher circuits, coal, wood chips |
| Product strategy | Fines plus oversize, configuration dependent | Multiple deck-separated fractions |
| Key wear areas | Drum media, rollers, drive, brushes | Screen media, bearings, springs, drive |
7. Maintenance is different
On a trommel, inspect drum condition, support rollers, drive components, brushes, screen panels and buildup. On a vibrating screen, inspect deck media, tensioning, bearings, shafts, springs or isolators, structural cracks and drive components.
8. Mobility and setup can be important
Portable trommels and deck screens may be wheeled or tracked. Compare transport dimensions, setup time, hopper capacity, conveyor fold, stockpile height and whether the machine integrates with your crusher, grinder, wash plant or loader pattern.
9. Buy based on a material test when possible
Screening is highly material-specific. Ask for production history on similar feed, inspect installed media and understand which change parts produce your target sizes. A demonstration on representative material is more useful than a generic capacity claim.
The takeaway
Trommels are strong candidates for many organic, soil and mixed-material applications where tumbling helps separation. Vibrating screens are strong candidates for aggregate and multi-deck sizing where controlled fractions and high-energy screening are important.
