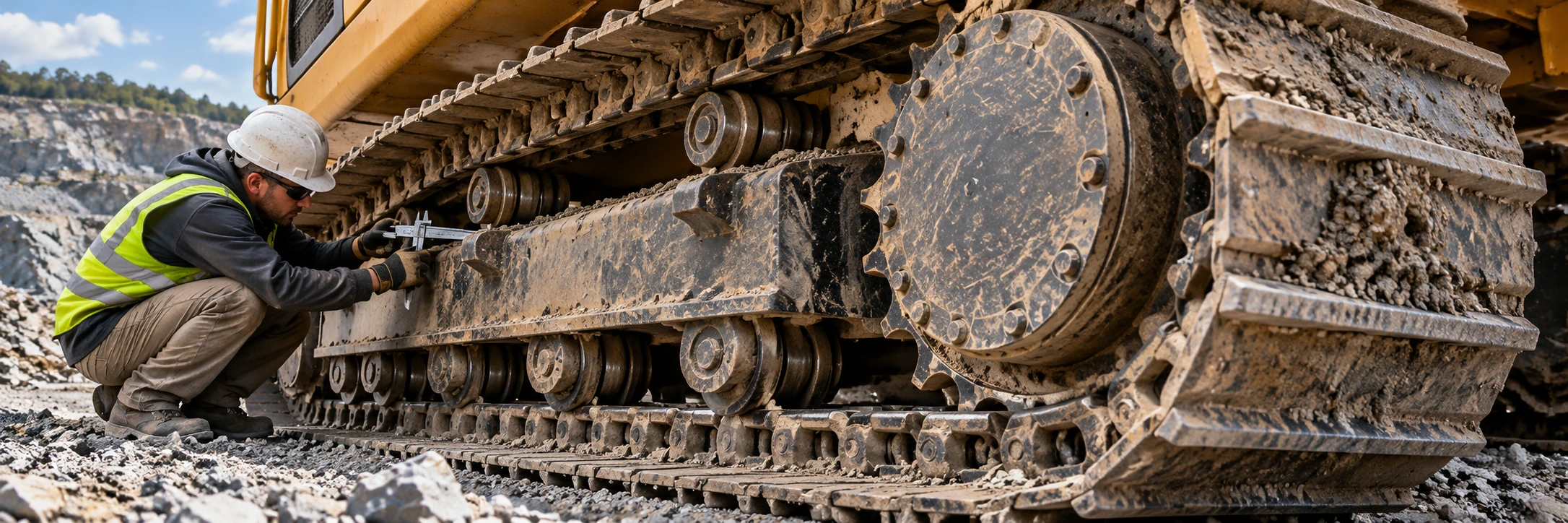

Undercarriage condition can materially change the economics of a used dozer, crawler loader, compact track loader or tracked excavator. The goal of a buyer inspection is not to guess remaining life from one photograph. It is to identify the component set, measure wear consistently, look for uneven patterns and understand whether the machine has been operated and maintained in a way that accelerates wear.
1. Know what you are inspecting
A tracked undercarriage is a system. Depending on machine design it includes track chains or belts, links, pins and bushings, shoes or pads, rollers, carrier rollers, idlers, sprockets, guards and tensioning components. Caterpillar notes that undercarriage components are matched to machine application and ground conditions, which is why two machines with similar hours can show very different wear.
2. Clean the undercarriage before judging it
Packed clay, concrete, mud, stone and debris can hide cracks, leaks, loose hardware and worn surfaces. Ask for enough cleanup to see the components. Look on both sides of the machine and compare left-to-right condition. A clean machine is not proof of good condition, but inspection through packed material is unreliable.
3. Inspect the track chain or belt
On steel-track machines, look for wear on links, pins and bushings, damaged seals, cracked links and abnormal side wear. On rubber-track machines, inspect for cuts, missing tread material, exposed cords, torn lugs and damage around the embedded metal structure. Do not estimate percentage remaining from appearance alone when a manufacturer wear chart or measurement procedure is available.
4. Check rollers, idlers and sprockets
Look for leakage, flat spots, damaged flanges, abnormal contact patterns and loose or missing hardware. Sprocket teeth should be evaluated for wear shape and engagement with the chain. Idlers should track correctly without obvious side loading. A pattern concentrated on one side can point to alignment, operating-practice or component issues that deserve a closer look.
5. Evaluate track tension correctly
Track tension that is too tight or too loose can affect wear and performance. Use the manufacturer procedure for the exact model and undercarriage. Do not rely on a generic sag number. Ask whether the tensioner holds adjustment and inspect for visible leakage or damage around the recoil and tensioning system.
6. Measure instead of guessing
Professional undercarriage management uses repeatable measurements. Caterpillar's current wear-monitoring systems track link wear and use wear thresholds to support maintenance planning. A buyer does not need the same technology to apply the principle: use the correct measuring tools, record actual dimensions and compare them with the manufacturer wear chart for that component family.
7. Look for uneven wear patterns
Uneven shoe wear, one-sided roller flange wear, scalloping, abnormal bushing contact or a large difference between left and right sides can be more informative than average wear alone. Ask what application the machine worked in, whether it spent significant time traveling on slopes, rock or abrasive material and whether components were replaced as a complete set or piecemeal.
8. Run the machine
Travel forward and reverse, steer both directions and listen for popping, binding, grinding or unusual noise. Watch whether the tracks stay centered and whether one side behaves differently from the other. Perform this test on a safe surface and under conditions appropriate for the machine.
Buyer checklist
| Area | What to record |
|---|---|
| Track chain / belt | Wear measurements, cracks, seal or cord condition |
| Rollers | Wear, leakage, flange condition, left/right pattern |
| Idlers | Wear, alignment, leakage and side contact |
| Sprockets | Tooth profile, engagement and damage |
| Tension system | Adjustment, leakage and correct sag procedure |
| Operational test | Tracking, steering, noise and vibration |
The takeaway
An undercarriage should be treated as a measured wear system, not a cosmetic item. Record the actual component condition, compare measurements with the correct manufacturer limits and price the machine with any near-term undercarriage work in mind.
