NEW - Liddell R&S Apache SQP Mobile Batch Plant - ALMOST COMPLETE - 3-5 WEEKS

INCLUDED DETAILS: New 2026 Liddell R&S Apache SQP concrete batch plant with 64-ton, 3-compartment aggregate storage and 12-cu.-yd. aggregate batcher, 30-inch inline transfer conveyor, 57-ton tilt-up cement silo, 12-cu.-yd. cement batcher, 3-inch turbine-type metered water system, 15-HP air compressor with 120-gallon tank, and single-axle transport. General capacity is up to 200 yards per hour; air piping is factory installed and batching controls are electric-over-air manual.

NOTE: Options at bottom of Specs

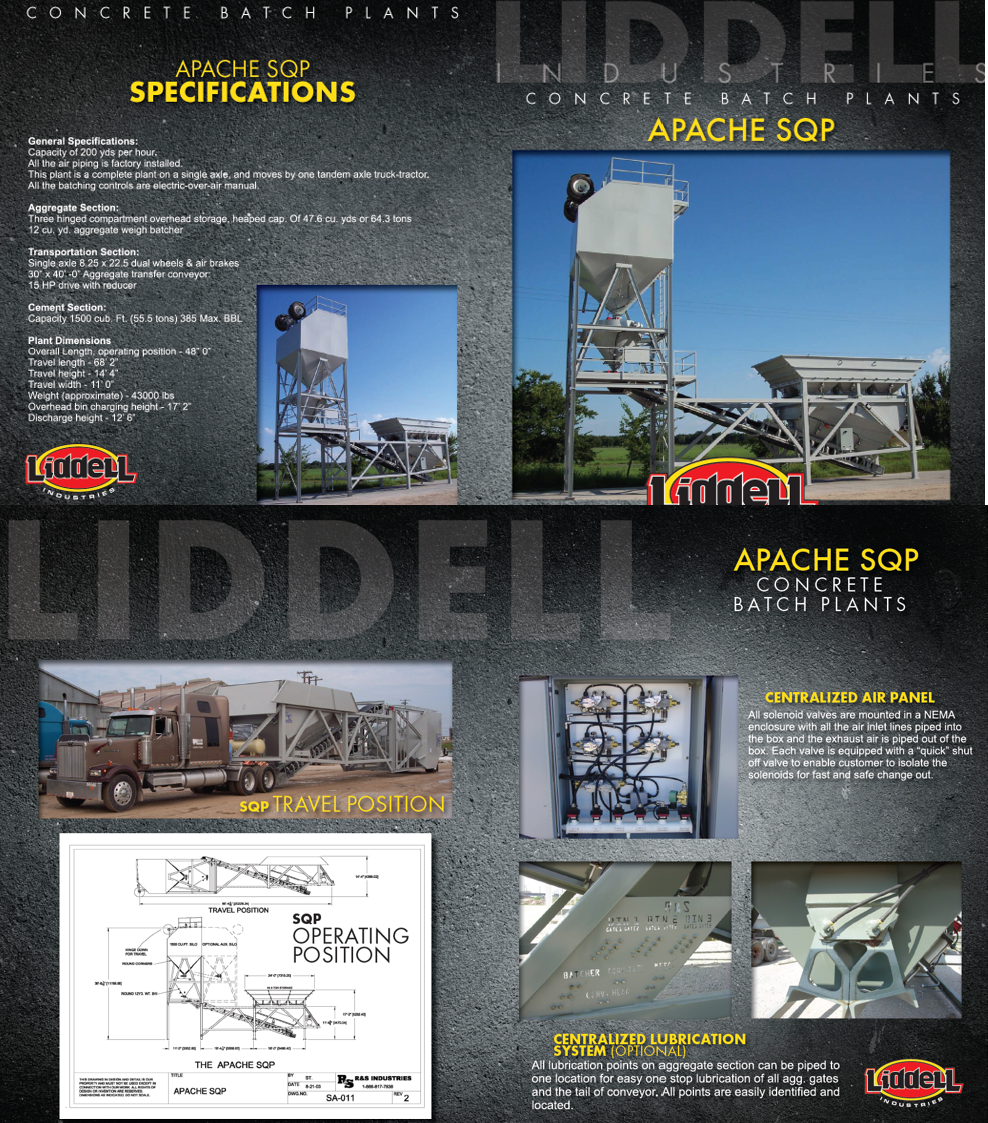

SPECIFICATIONS:

Apache SQP, 12 Yard – Standard Mobile

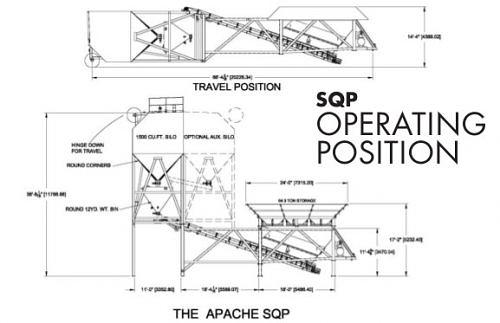

Apache SQP / base unit is movable with one truck, designed for fast job-site set up.

Theoretical Plant Capacity – 200 Yards per Hour

Note: Can be equipped with many options to meet most applications.

Note: Additional freight load may be required depending on options ordered.

Apache SQP 12 Aggregate Section:

Overhead Storage - Heaped Volume: 47.0 Cubic Yards / 64.0 Tons

Apache SQP Overhead Aggregate Storage:

• Aggregate support frame and intermediate frame are all welded, heavy duty tubular steel.
• Intermediate support frame is built for the addition of an Apache SQP auxiliary silo.
• Three equal compartments with the upper section hinged for easy transportation.
• Lower storage section is welded construction with 1/4” plate on sloped sides and 3/16” plate on the vertical sides.
• (3) clamshell type gates with replaceable grease type pivot-pins, brass bushings and precision cut gears on each compartment.
• (2) 4” x 8” air cylinder and solenoid for each compartment. Mechanical linkage is used for the middle gate.
• Air hose and fittings are factory installed from the solenoid valves to the aggregate gates.

Apache SQP, 12 Cubic Yard Aggregate Batcher:

• Constructed of 3/16” plate on the vertical sides and 1/4” plate on the sloped sides.
• (1) clamshell gate with replaceable grease type pivot-pins, brass bushings and precision cut gears.
• (2) 4” x 8” air cylinders and an inching valve for greater control of material flow.
• Proximity switch confirms the gate is closed.
• (2) piston type vibrators, mounted on opposing sides of the batcher.
• 4 x 15K, NTEP certified, load cell system with a rated scale capacity of 40,000 lbs., includes (4) S-beam style load cells and summing box.
• Test weight hangers installed at the factory.
• Air hose and fittings are factory installed from the solenoid valves to the aggregate batcher gate

Apache SQP 30” x 38’-6” Aggregate Transfer Conveyor:

• Channel frame steel construction.
• 15 H.P. TEFC - 350 / F.P.M. – 650 T.P.H. drive motor with reducer and backstop.
• Rubber lagged head pulley with drive shaft and pillow block bearings
• Wing type pulley with shaft and wide-slot type bearing take-ups
• 4” CEMA “B” sealed idlers on 4’-0” centers.
• 4” CEMA “B” return rollers on 10’-0” centers.
• Belting is 2-ply with 3/16” top cover with 1/16” bottom cover.
• Gate length skirt boards with special “Wedge” style rubber flashing adjustment is factory installed.
• Discharge head includes a water inlet, (6) admix ports, shroud and integrated belt wiper.
• Safety features include a head and tail pulley guard and safety trip switch with cable up one side of the charging conveyor.

Apache SQP Cement Section:

Silo capacity - 1541 Cu. Ft. / 57.0 Tons / 385 Max BBL

Capacities are based on a cement weight of 74.0 lbs per cubic foot.

Apache SQP Silo Storage:

• Silo folds down for travel convenience.
• Silo upper frame and in-board lower legs are of welded type construction with hinge points on the in-board side for easy erection.
• Silo out-board lower legs are of bolted type construction.
• Silo top is complete with safety handrails and toe boards.
• Safety pressure relief valve and access manhole.
• 4” pneumatic fill line with cam lock fitting and cap.
• Silo cone with rounded corners for improved material flow.
• 10” butterfly valve with pneumatic actuator and solenoid.
• Safety emergency slide gate and 5” clean out pipe.
• Complete aeration system with full size air pads, solenoid and required plumbing. Aeration components are replaceable from the outside.
• Lifting lugs factory installed.

PJC-305 Silo Top Dust Collector

• Pulse jet type collector, rated at 1,700 C.F.M. with a 99.99 percent cleaning efficiency.
• One compartment with (8) 8” x 39” top entry cartridges for 305 square feet of filtration area.
• (2) ¾” Asco solenoid valve and an in line filter and regulator.
• Hinged top entry for easy entry into the system.
• Solid state timer controlled reverse air pulse cleaning system.
• Adjustable control panel for duration and cycle times.
• Pre-wired and tested at the factory prior to shipment.
• Requires 90 – 100 PSI of clean dry air.

Dust Collector Pressure Switch

• Allows the silo top filters to come on automatically based on a pre-set pressure.

Minihelic Gauge

• Gives a visual indication of the filter media condition based on a pressure difference between the clean and dirty sides of the filter media.

Apache SQP, 12 Cubic Yard Cement Batcher:

• Round construction for improved material flow.
• 8” butterfly discharge valve including pneumatic actuator and an inching solenoid for material flow control.
• Proximity switch confirms the gate is in closed position.
• Complete aeration system with full size pads, solenoid valve and required plumbing. Aeration components are replaceable from the outside.
• Air vibrator is mounted on the sloping side of the batcher and includes solenoid valve.
• 3 x 5K, NTEP certified, load cell system with a rated scale capacity of 10,000 lbs., includes (3) S-beam style load cells and summing box.
• Test weight hangers are factory installed.

PJC-35 Batcher Dust Collector

• Pulse jet type collector, rated at 210 C.F.M. with a 99.99 percent cleaning efficiency.
• One compartment with (2) 5.5/8” x 20” top entry cartridges for 36 square feet of filtration area.
• Solid state timer controlled reverse air pulse cleaning system.
• Adjustable control panel for duration and cycle times.
• Pre-wired and tested at the factory prior to shipment.
• Requires 90 – 100 PSI of clean dry air.
• Mated mounting flange to be installed by customer.

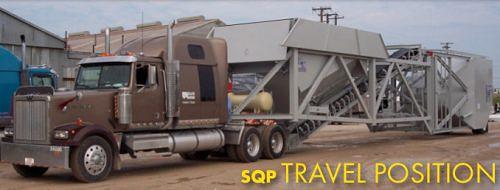

Apache SQP Transportation:

• Single axle with (4) 255 70R 22.5 wheels and tires.
• Air brakes, king pin, fifth wheel rub plate and travel lights

Air Specifications:

• 15 H.P. / 120-gallon air compressor with ¾” outlet, pre-wired starter and complete air piping.
• A weather tight NEMA enclosure for Main plant solenoids. All solenoids are plumbed in and exhaust lines routed out of the enclosure. Each valve is equipped with a “Quick” cut off to allow the customer isolation of the individual valves for easy maintenance.
• (2) oversized ¾” air filters, regulators and lubricators, one on the aggregate section and one on the cement section.
• Air system complete from air compressor to all pneumatic equipment on the plant.

Water Specifications:

• 3” turbine type water meter with electronic scalable transmitter and pulse head.
• 3” inlet water strainer with replaceable screen.
• 3” butterfly discharge valve with pneumatic actuator and solenoid valve.
• Meter is mounted at an approximate 5’-0” height on the aggregate conveyor.
• Complete piping to discharge head

Electrical Specifications:

• Wiring from the solenoid valves to a NEMA 12 enclosed power panel located on the aggregate frame is factory installed.
• The main disconnect and motor starters are wired to each motor.
• All equipment is wired and tested prior to shipment.

General Specifications:

• All equipment is treated with a zinc primer and painted with polyester polyurethane paint.
• Does not include manual or automatic control panel.

OPTIONAL EXTRAS:

$74,838 - PJC-1200 Central Dust Collector

*Includes Central Dust Collector, Shroud and 14” “Quick Connect” Ducting Package.

Optional available: Automatic Recycle System for + $10,351 and Transportation System for $12,897.

$111,475 - 30” x 66’ Ground Traversing Radial Stacker

*Includes Radial Stacker, Controls, and 10' x 12' Charge Hopper.

$37,550 - Command Alkon - CommandBatch Batch Computer.

$90,772 - Apache SQP Auxiliary Silo Package

*Includes silo, mobile transportations system, 10" screw conveyor, and PJC-305/54 silo top dust collector.

$9,100 - 10 H.P. Water Pump

$19,943 - Weighed Water System Upgrade

$9,441 - Central Lubrication System

$495 - Moisture Probe Sleeve / Sand Bin

$3,695/ea - 4" Anti-Overfill System

$2,205/ea - Bin level Indicators

$6,833 - 6.1 H.P. Regenerative Low Pressure Aeration Blower

$18,350 - 3/112 Apache Aggregate Bin Extension

$36,695 - 3/160 Apache Aggregate Bin Extension

$4,777 - 2’-6” Aggregate Heap Plates / 3 Compartment

$7,345 - 3 Compartment Storage “Scoreboard”

$7,669 - 4/64 Ton Aggregate Storage, Upgrade

$32,540 - 4/112 Apache Aggregate Bin Extension

$51,240 - 4/160 Apache Aggregate Bin Extension

$5,923 - 2’-6” Aggregate Heap Plates / 4 Compartment

$8,509 - 4 Compartment Storage “Scoreboard”

$3,680 - 2’-6” Aggregate Storage Back Plate
